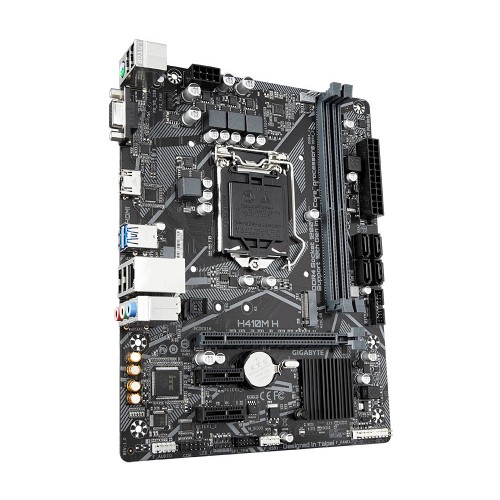

Gigabyte H410M H 10th Gen Micro ATX Motherboard
৳9800
৳8800
প্রোডাক্ট কোড : P0480
বিস্তারিত
Specification
Basic Information Supported CPU Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
L3 cache varies with CPUChipset Intel® H110 Express Chipset BIOS 1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm Expansion Slots PCI 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conform to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)Memory Type Dual channel DDR4 memory architecture Slots 2 x DIMM Supported Memory Support for DDR4 2400/2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modulesMaximum Memory 32 GB Graphics Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.Max Shared Memory 1024 MB Connector & Ports HDMI 1 x HDMI D-Sub (s) 1 x D-Sub USB (s) Chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit) Supported Storage Chipset:
4 x SATA 6Gb/s connectorsAudio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF OutInternal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumperTPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header Warranty Information Manufacturing Warranty 03 Years Description
