The MSI PRO H610M-E DDR4 12th Gen, 13th Gen & 14th Gen mATX Motherboard is a high-performance motherboard for the LGA 1700 socket that supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron CPUs. This motherboard includes DDR4 memory compatibility, which can run at up to 3200(MAX) MHz. It also has Core Boost technology, a premium layout, and a digital power architecture, which improves performance and enables additional cores. Memory Boost technology, which produces pure data signals, ensures the highest performance, stability, and compatibility with the MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard. It has PCIe 4.0, which allows for extremely rapid data transfers. Audio Boost technology provides studio-level sound quality to your ears, making it a perfect motherboard for gamers and music aficionados. The MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard also has Steel Armor, which protects VGA cards from bending and EMI while improving performance, stability, and robustness. This motherboard is a good choice for individuals looking for a high-performance motherboard that can handle demanding programs and games, thanks to its sophisticated features and superb design. In Bangladesh, you can get the original MSI PRO H610M-E DDR4 mATX Motherboard From Star Tech. We have a large collection of the latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI PRO H610M-E DDR4 Motherboard comes with 3 years warranty.Specification
Basic Information Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700Chipset Intel H610 Chipset Form Factor mATX
9.3 in. x 7.9 in. (23.6 cm x 20 cm)Audio Realtek ALC897 Codec
7.1-Channel High-Definition AudioExpansion Slots PCI 1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From H610 chipset)
Supports PCIe 3.0 x1Memory Type DDR4 Slots 2 Supported Memory Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memoryMaximum Memory 64GB Graphics Graphics supporting a maximum resolution of 4K 30Hz
supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.Connector & Ports HDMI 1x HDMI 1.4 with HDR port VGA (s) 1x VGA USB (s) 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub-GL850G)
Supports additional 4 USB 2.0 portsLAN Port (s) 1x Realtek RTL8111H 1Gbps LAN controller Supported Storage 1x M.2 slot (Key M) (from CPU)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devicesAudio 1x Front panel audio connector Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin +12V power connector
1x 4-pin CPU fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Serial port connector
1x Clear CMOS jumperTPM (Trusted Platform Module ) 1x TPM module connector Others Special Features 1x 4-pin RGB LED connector
4x EZ Debug LEDWarranty Information Manufacturing Warranty 3 years Description

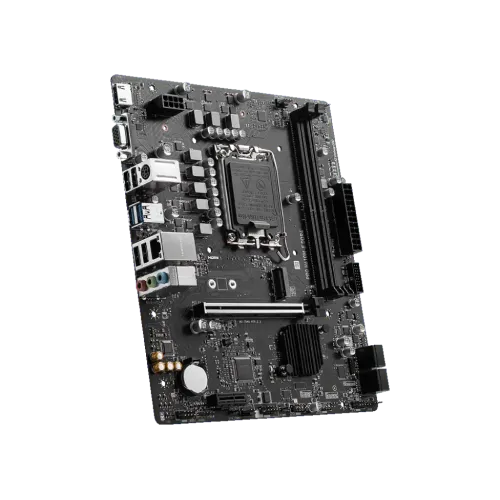

MSI PRO H610M-E DDR4 mATX Motherboard
Buy MSI PRO H610M-E DDR4 mATX Motherboard best Motherboard Shop in BD
