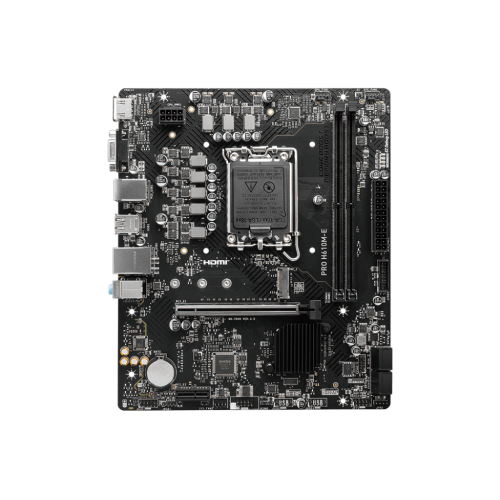

The MSI PRO H610M-E DDR4 12th Gen, 13th Gen & 14th Gen mATX Motherboard is a high-performance motherboard for the LGA 1700 socket that supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron CPUs. This motherboard includes DDR4 memory compatibility, which can run at up to 3200(MAX) MHz. It also has Core Boost technology, a premium layout, and a digital power architecture, which improves performance and enables additional cores. Memory Boost technology, which produces pure data signals, ensures the highest performance, stability, and compatibility with the MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard. It has PCIe 4.0, which allows for extremely rapid data transfers. Audio Boost technology provides studio-level sound quality to your ears, making it a perfect motherboard for gamers and music aficionados. The MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard also has Steel Armor, which protects VGA cards from bending and EMI while improving performance, stability, and robustness. This motherboard is a good choice for individuals looking for a high-performance motherboard that can handle demanding programs and games, thanks to its sophisticated features and superb design.Specification
Basic Information Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700Chipset Intel H610 Chipset Form Factor mATX
9.3 in. x 7.9 in. (23.6 cm x 20 cm)Audio Realtek ALC897 Codec
7.1-Channel High-Definition AudioExpansion Slots PCI 1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From H610 chipset)
Supports PCIe 3.0 x1Memory Type DDR4 Slots 2 Supported Memory Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memoryMaximum Memory 64GB Graphics Graphics supporting a maximum resolution of 4K 30Hz
supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.Connector & Ports HDMI 1x HDMI 1.4 with HDR port VGA (s) 1x VGA USB (s) 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub-GL850G)
Supports additional 4 USB 2.0 portsLAN Port (s) 1x Realtek RTL8111H 1Gbps LAN controller Supported Storage 1x M.2 slot (Key M) (from CPU)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devicesAudio 1x Front panel audio connector Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin +12V power connector
1x 4-pin CPU fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Serial port connector
1x Clear CMOS jumperTPM (Trusted Platform Module ) 1x TPM module connector Others Special Features 1x 4-pin RGB LED connector
4x EZ Debug LEDWarranty Information Manufacturing Warranty 3 years Description
MSI PRO H610M-E DDR4 mATX Motherboard
